SDM20E40C-7-F

SDM20E40C-7-F

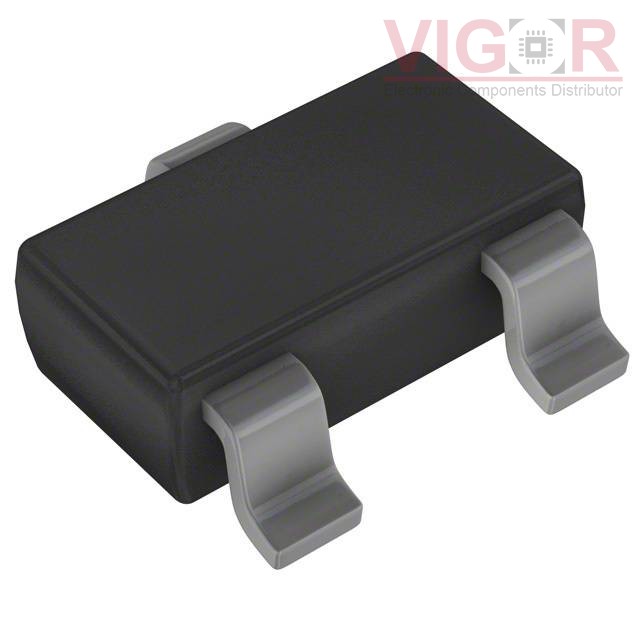

Image is for reference,
please contact us to get the real picture

Part No :

SDM20E40C-7-F

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE ARRAY SCHOTTKY 40V SC59-3
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
SDM20E40C-7-F PDF
Availability
0 pieces
Unit Price
$0.08480

Current price of SDM20E40C-7-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDM20E40C-7-F Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io) (per Diode):400mA (DC)
Voltage - Forward (Vf) (Max) @ If:500 mV @ 200 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:70 µA @ 25 V
Operating Temperature - Junction:-30°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SC-59-3
