NSVBAV70TT3G

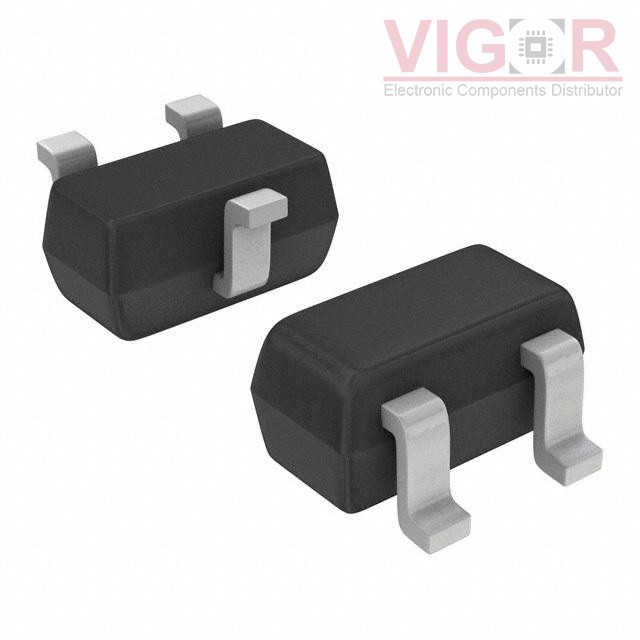

Image is for reference,
please contact us to get the real picture

Part No :: NSVBAV70TT3G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: DIODE ARRAY SW 100V 100MA SC75

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: NSVBAV70TT3G PDF

Availability: 200000 pieces

Unit Price: ~~$0.05298~~

Current price of NSVBAV70TT3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSVBAV70TT3G Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io) (per Diode):	100mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1 V @ 50 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	6 ns
Current - Reverse Leakage @ Vr:	1 µA @ 100 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	SC-75, SOT-416
Supplier Device Package:	SC-75

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
