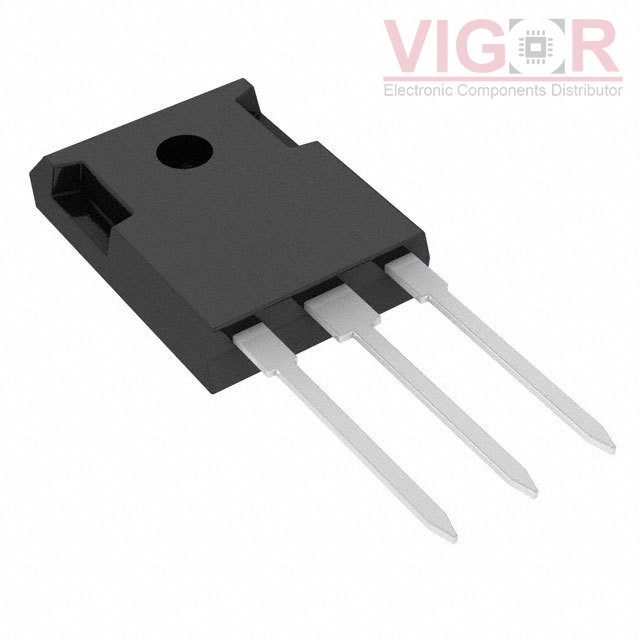

MBR30H100PT-E3/45

MBR30H100PT-E3/45

Image is for reference,
please contact us to get the real picture

Part No :

MBR30H100PT-E3/45

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE ARRAY SCHOTTKY 100V TO3P
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
MBR30H100PT-E3/45 PDF
Availability
0 pieces
Unit Price
$1.71607

Current price of MBR30H100PT-E3/45 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MBR30H100PT-E3/45 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io) (per Diode):15A
Voltage - Forward (Vf) (Max) @ If:820 mV @ 15 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:5 µA @ 100 V
Operating Temperature - Junction:-65°C ~ 175°C
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT M1MA152WKT1

M1MA152WKT1

DIODE ARRAY GP 80V 100MA SC59
HOT MBR20100CTF-G1

MBR20100CTF-G1

DIODE SCHOTTKY 100V 10A TO220AB
HOT DD600N16KAHPSA1

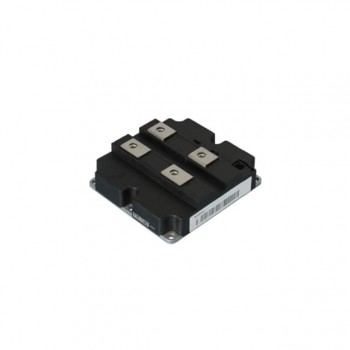

DD600N16KAHPSA1
