BAV170MYL

BAV170MYL

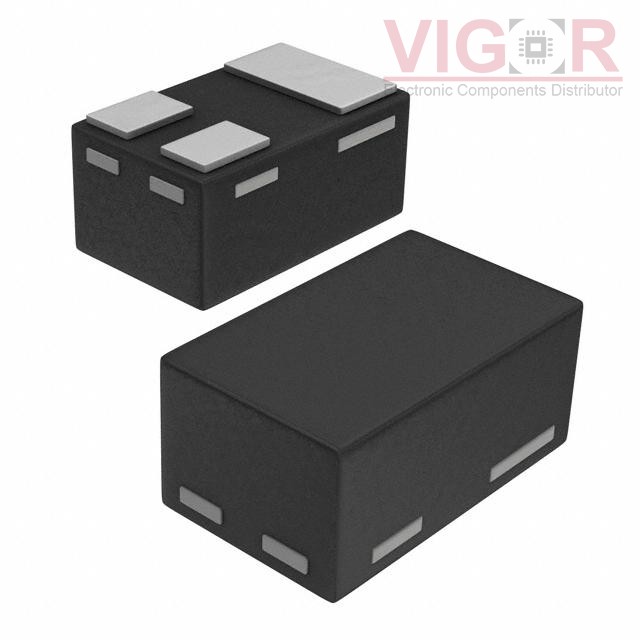

Image is for reference,
please contact us to get the real picture

Part No :

BAV170MYL

Manufacturer
Nexperia
Description
DIODE ARRAY GP 75V 320MA 3DFN
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
BAV170MYL PDF
Availability
0 pieces
Unit Price
$0.02907

Current price of BAV170MYL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAV170MYL Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):75 V
Current - Average Rectified (Io) (per Diode):320mA (DC)
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 150 mA
Speed:Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):3 µs
Current - Reverse Leakage @ Vr:5 nA @ 75 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Surface Mount
Package / Case:SC-101, SOT-883
Supplier Device Package:DFN1006-3
