LL103C-GS18

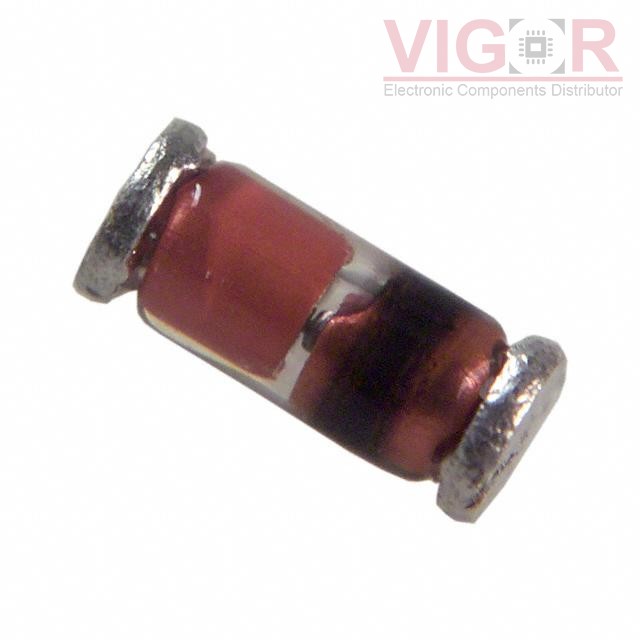

Image is for reference,
please contact us to get the real picture

Part No :: LL103C-GS18

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: DIODE SCHOTTKY 20V 200MA SOD80

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: LL103C-GS18 PDF

Availability: 8992 pieces

Unit Price: ~~$0.38000~~

Current price of LL103C-GS18 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LL103C-GS18 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	600 mV @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	10 ns
Current - Reverse Leakage @ Vr:	5 µA @ 10 V
Capacitance @ Vr, F:	50pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package:	SOD-80 MiniMELF
Operating Temperature - Junction:	125°C (Max)

Please confirm the specifications of the products when ordering.
