SB560-3G

SB560-3G

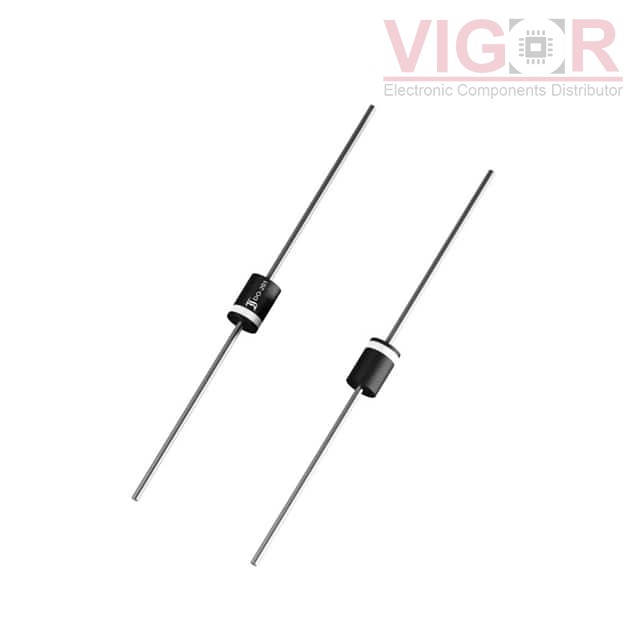

Image is for reference,
please contact us to get the real picture

Part No :

SB560-3G

Manufacturer
Diotec Semiconductor
Description
SCHOTTKY DO-201 60V 5A
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
SB560-3G PDF
Availability
17000 pieces
Unit Price
$0.22950

Current price of SB560-3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SB560-3G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):60 V
Current - Average Rectified (Io):5A
Voltage - Forward (Vf) (Max) @ If:550 mV @ 5 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:50 µA @ 60 V
Capacitance @ Vr, F:-
Mounting Type:Through Hole
Package / Case:DO-201AA, DO-27, Axial
Supplier Device Package:DO-201
Operating Temperature - Junction:-50°C ~ 150°C
