DST560S

DST560S

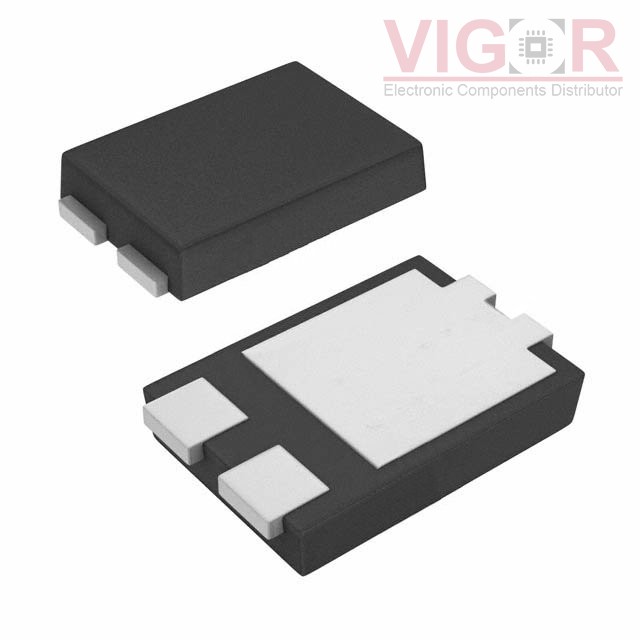

Image is for reference,
please contact us to get the real picture

Part No :

DST560S

Manufacturer
Wickmann / Littelfuse
Description
DIODE SCHOTTKY 60V 5A TO277B
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
DST560S PDF
Availability
3152 pieces
Unit Price
$0.71000

Current price of DST560S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DST560S Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):60 V
Current - Average Rectified (Io):5A
Voltage - Forward (Vf) (Max) @ If:750 mV @ 5 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:700 µA @ 60 V
Capacitance @ Vr, F:314pF @ 5V, 1MHz
Mounting Type:Surface Mount
Package / Case:TO-277, 3-PowerDFN
Supplier Device Package:TO-277B
Operating Temperature - Junction:-55°C ~ 150°C
