S1MSWF-7

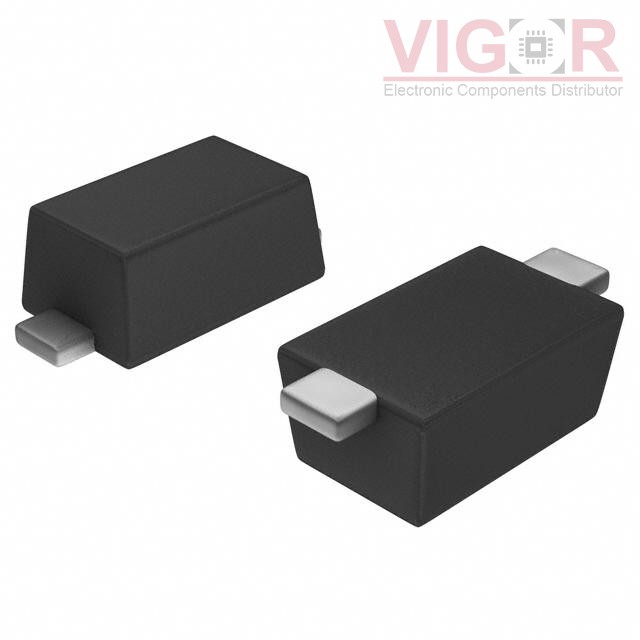

Image is for reference,
please contact us to get the real picture

Part No :: S1MSWF-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: DIODE GEN PURP 1KV 1A SOD123F

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: S1MSWF-7 PDF

Availability: 38422 pieces

Unit Price: ~~$0.44000~~

Current price of S1MSWF-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S1MSWF-7 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1000 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	1 µs
Current - Reverse Leakage @ Vr:	10 µA @ 1000 V
Capacitance @ Vr, F:	6pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SOD-123F
Supplier Device Package:	SOD-123F
Operating Temperature - Junction:	-55°C ~ 150°C
