TSP20U60S S1G

TSP20U60S S1G

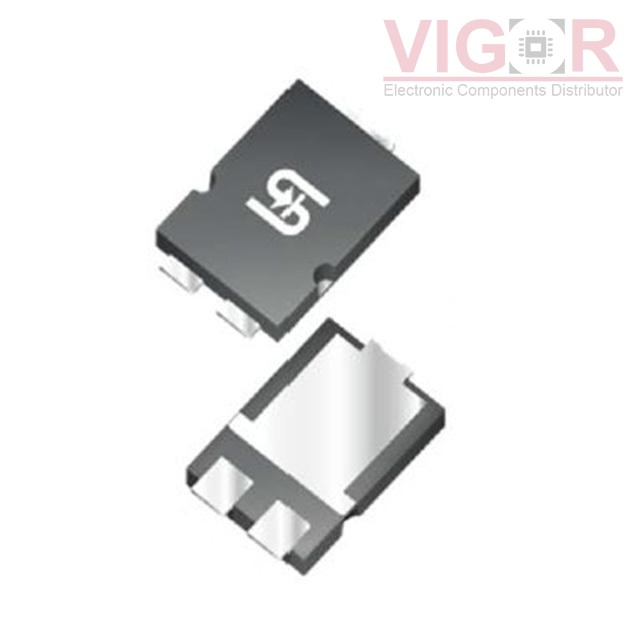

Image is for reference,
please contact us to get the real picture

Part No :

TSP20U60S S1G

Manufacturer
TSC (Taiwan Semiconductor)
Description
DIODE SCHOTTKY 60V 20A TO277A
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
TSP20U60S S1G PDF
Availability
24761 pieces
Unit Price
$0.97000

Current price of TSP20U60S S1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSP20U60S S1G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):60 V
Current - Average Rectified (Io):20A
Voltage - Forward (Vf) (Max) @ If:580 mV @ 20 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 µA @ 60 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount
Package / Case:TO-277, 3-PowerDFN
Supplier Device Package:TO-277A (SMPC)
Operating Temperature - Junction:-55°C ~ 150°C
