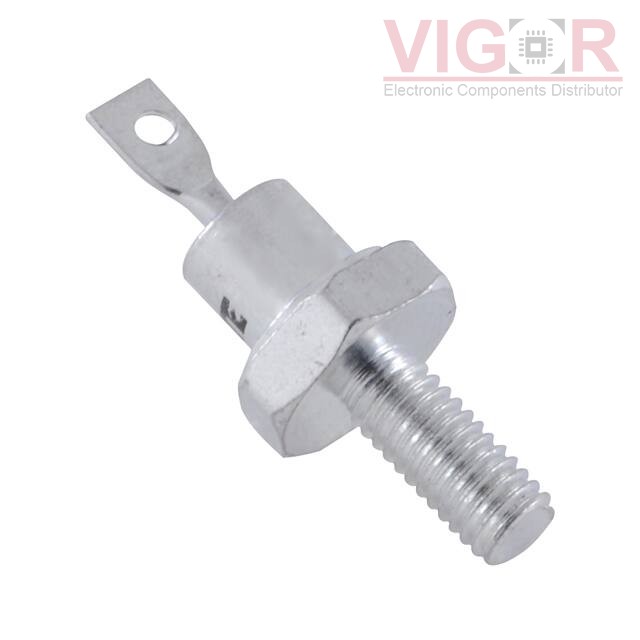

NTE5909

NTE5909

Image is for reference,
please contact us to get the real picture

Part No :

NTE5909

Manufacturer
NTE Electronics, Inc.
Description
R-800PRV 16A ANODE CASE
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
NTE5909 PDF
Availability
23 pieces
Unit Price
$13.48000

Current price of NTE5909 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE5909 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):800 V
Current - Average Rectified (Io):16A
Voltage - Forward (Vf) (Max) @ If:1.23 V @ 50 A
Speed:Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:12 mA @ 800 V
Capacitance @ Vr, F:-
Mounting Type:Stud Mount
Package / Case:DO-203AA, DO-4, Stud
Supplier Device Package:DO-4
Operating Temperature - Junction:-65°C ~ 175°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT NTS10120EMFST1G

NTS10120EMFST1G

DIODE SCHOTTKY 120V 10A 5DFN
HOT V12PM10-M3/H

V12PM10-M3/H

DIODE SCHOTTKY 100V 12A TO277A

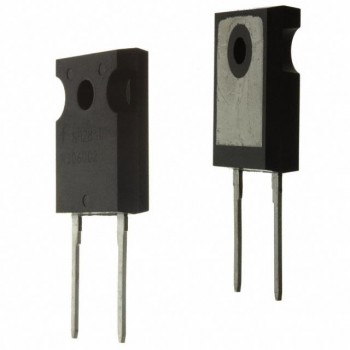

HOT FFSH5065A
