B130AF-13

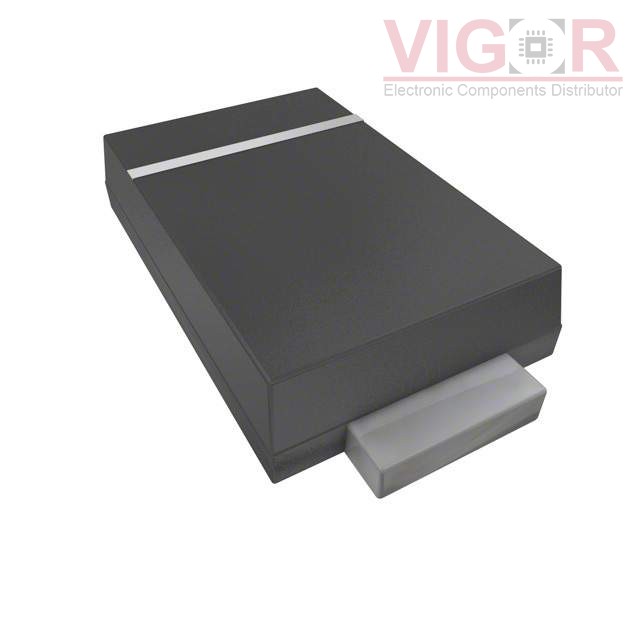

Image is for reference,
please contact us to get the real picture

Part No :: B130AF-13

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: DIODE SCHOTTKY 30V 1A SMAF

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 21 - Aug 25 2025

DataSheet: B130AF-13 PDF

Availability: 0 pieces

Unit Price: ~~$0.42000~~

Current price of B130AF-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B130AF-13 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	500 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	100 µA @ 30 V
Capacitance @ Vr, F:	50pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-221AC, SMA Flat Leads
Supplier Device Package:	SMAF
Operating Temperature - Junction:	-55°C ~ 150°C

Please confirm the specifications of the products when ordering.
