SBRT05U20LPS-7B

SBRT05U20LPS-7B

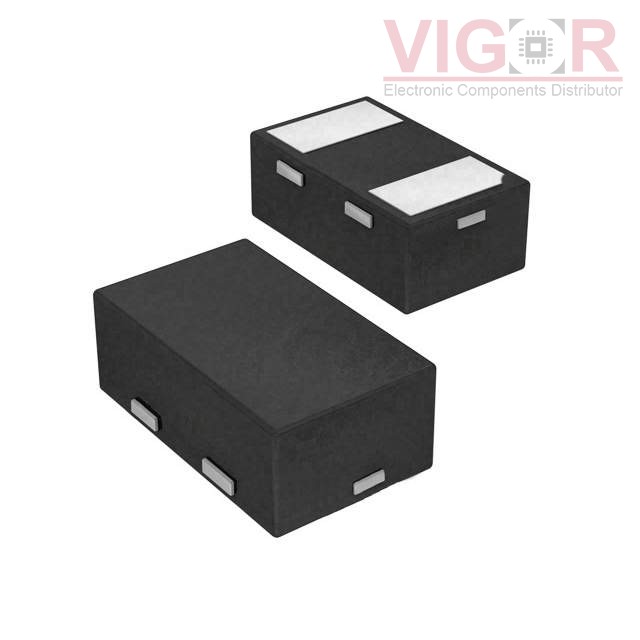

Image is for reference,
please contact us to get the real picture

Part No :

SBRT05U20LPS-7B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
SUPER BARRIER RECTIFIER X2-DFN10
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SBRT05U20LPS-7B PDF
Availability
919860000 pieces
Unit Price
$0.40000

Current price of SBRT05U20LPS-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SBRT05U20LPS-7B Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Super Barrier
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):500mA
Voltage - Forward (Vf) (Max) @ If:390 mV @ 500 mA
Speed:Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:50 µA @ 20 V
Capacitance @ Vr, F:14pF @ 20V, 1MHz
Mounting Type:Surface Mount
Package / Case:0402 (1006 Metric)
Supplier Device Package:X2-DFN1006-2
Operating Temperature - Junction:-65°C ~ 150°C
