VSB1545-M3/54

VSB1545-M3/54

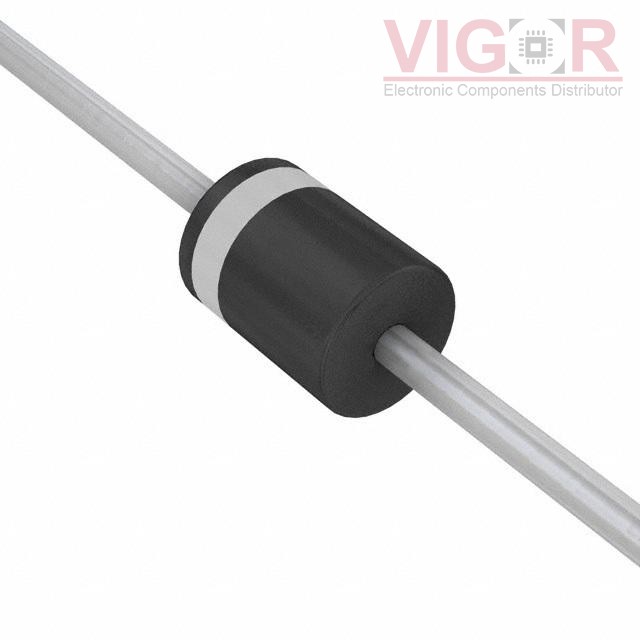

Image is for reference,
please contact us to get the real picture

Part No :

VSB1545-M3/54

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE SCHOTTKY 45V 15A P600
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
VSB1545-M3/54 PDF
Availability
0 pieces
Unit Price
$0.58075

Current price of VSB1545-M3/54 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VSB1545-M3/54 Specifications
Type Description
Series:TMBS®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):45 V
Current - Average Rectified (Io):15A
Voltage - Forward (Vf) (Max) @ If:590 mV @ 15 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:800 µA @ 45 V
Capacitance @ Vr, F:1290pF @ 4V, 1MHz
Mounting Type:Through Hole
Package / Case:P600, Axial
Supplier Device Package:P600
Operating Temperature - Junction:-40°C ~ 150°C
