LS103B-GS18

LS103B-GS18

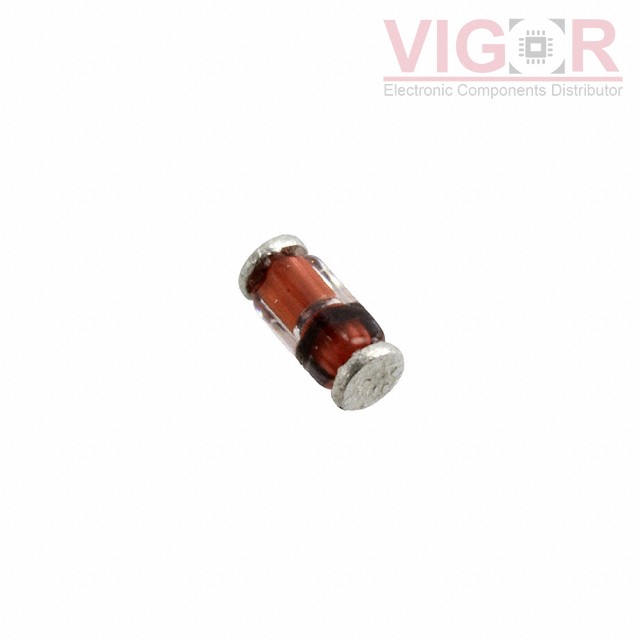

Image is for reference,
please contact us to get the real picture

Part No :

LS103B-GS18

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE SCHOTTKY 30V 15A SOD80
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
LS103B-GS18 PDF
Availability
0 pieces
Unit Price
$0.05720

Current price of LS103B-GS18 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LS103B-GS18 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):-
Voltage - Forward (Vf) (Max) @ If:600 mV @ 200 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):10 ns
Current - Reverse Leakage @ Vr:5 µA @ 20 V
Capacitance @ Vr, F:50pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:SOD-80 Variant
Supplier Device Package:SOD-80 QuadroMELF
Operating Temperature - Junction:125°C (Max)
