SB5H100/4

SB5H100/4

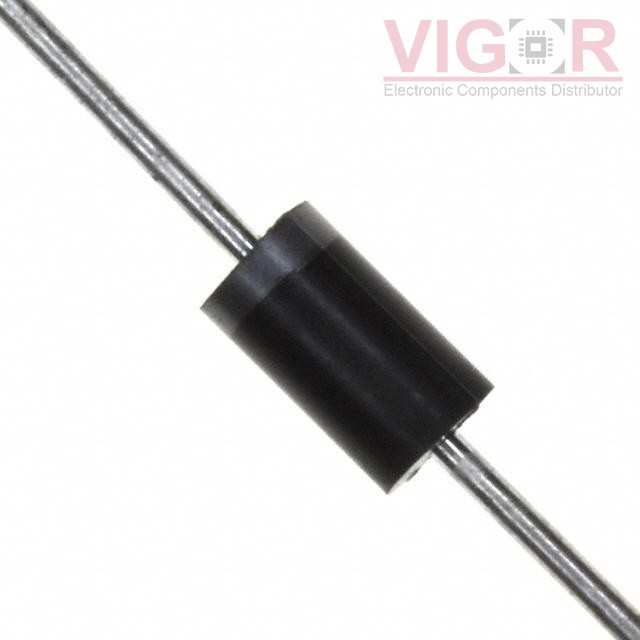

Image is for reference,
please contact us to get the real picture

Part No :

SB5H100/4

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE SCHOTTKY 100V 5A DO201AD
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
SB5H100/4 PDF
Availability
0 pieces
Unit Price
$0.30219

Current price of SB5H100/4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SB5H100/4 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io):5A
Voltage - Forward (Vf) (Max) @ If:800 mV @ 5 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:200 µA @ 100 V
Capacitance @ Vr, F:-
Mounting Type:Through Hole
Package / Case:DO-201AD, Axial
Supplier Device Package:DO-201AD
Operating Temperature - Junction:175°C (Max)
