BAT54WS-AQ

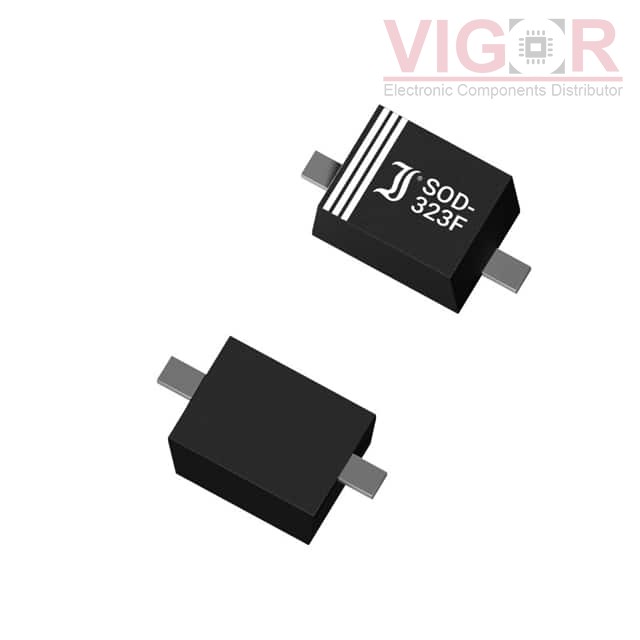

Image is for reference,
please contact us to get the real picture

Part No :: BAT54WS-AQ

Manufacturer: Diotec Semiconductor

Description: SCHOTTKY SOD-323 30V 0.2A

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: BAT54WS-AQ PDF

Availability: 0 pieces

Unit Price: ~~$0.02650~~

Current price of BAT54WS-AQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT54WS-AQ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	800 mV @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	6 ns
Current - Reverse Leakage @ Vr:	2 µA @ 25 V
Capacitance @ Vr, F:	10pF @ 1V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SC-90, SOD-323F
Supplier Device Package:	SOD-323
Operating Temperature - Junction:	-55°C ~ 150°C
