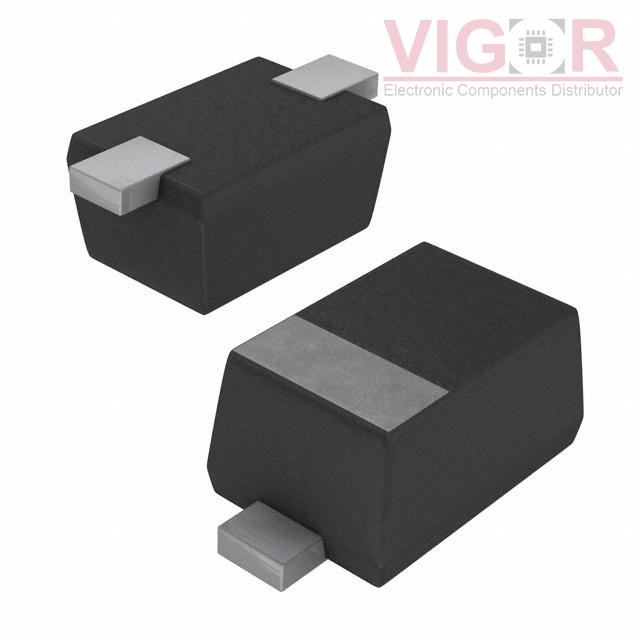

BAT54-02V-V-G-18

BAT54-02V-V-G-18

Image is for reference,
please contact us to get the real picture

Part No :

BAT54-02V-V-G-18

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE SCHOTTKY 30V 200MA SOD523
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
BAT54-02V-V-G-18 PDF
Availability
8463 pieces
Unit Price
$0.42000

Current price of BAT54-02V-V-G-18 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT54-02V-V-G-18 Specifications
Type Description
Series:BAT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Last Time Buy
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):200mA (DC)
Voltage - Forward (Vf) (Max) @ If:800 mV @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Capacitance @ Vr, F:10pF @ 1V, 1MHz
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SOD-523
Operating Temperature - Junction:125°C (Max)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT DA3S101A0L

DA3S101A0L

DIODE GEN PURP 80V 100MA SSMINI3
HOT MURS360B-F1-3000HF

MURS360B-F1-3000HF

DIODE GEN PURP 600V 3A DO214AA

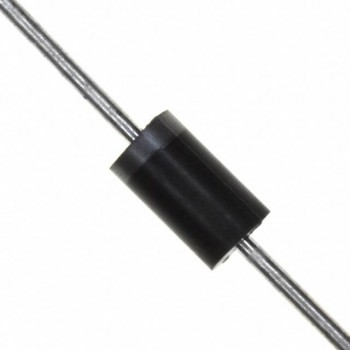

HOT 1N5406-E3/54
