TMBAT49FILM

TMBAT49FILM

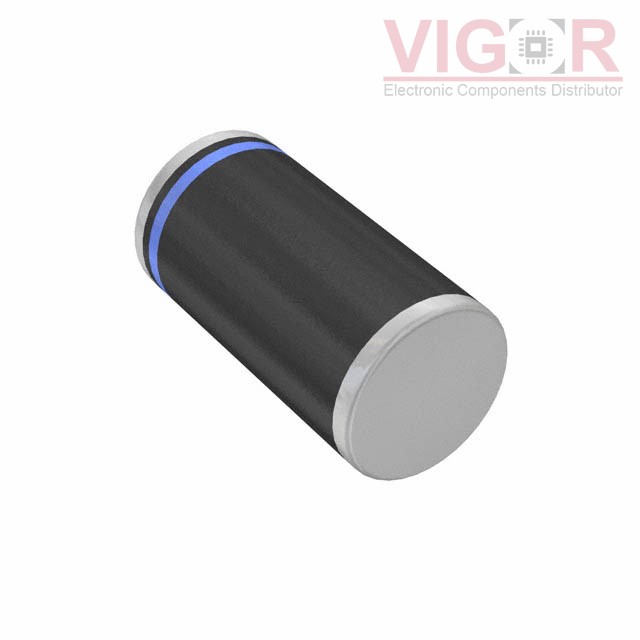

Image is for reference,
please contact us to get the real picture

Part No :

TMBAT49FILM

Manufacturer
STMicroelectronics
Description
DIODE SCHOTTKY 80V 500MA MELF
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
TMBAT49FILM PDF
Availability
8401 pieces
Unit Price
$0.53000

Current price of TMBAT49FILM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TMBAT49FILM Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):80 V
Current - Average Rectified (Io):500mA (DC)
Voltage - Forward (Vf) (Max) @ If:420 mV @ 100 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:200 µA @ 80 V
Capacitance @ Vr, F:120pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-213AB, MELF
Supplier Device Package:MELF
Operating Temperature - Junction:-65°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RGF1J

RGF1J

DIODE GEN PURP 600V 1A DO214AC
HOT EGP20G

EGP20G

RECTIFIER DIODE, 2A, 400V, DO-15

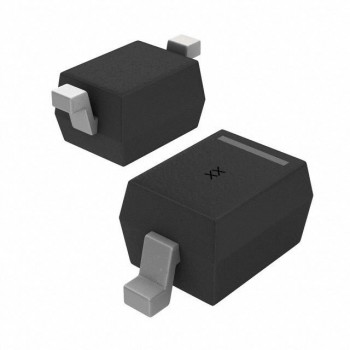

HOT SD101AWS-TP
