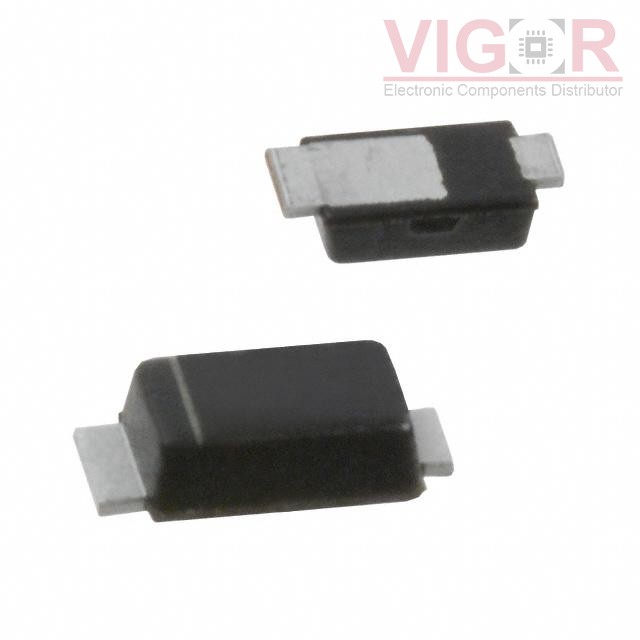

PD3S220LQ-7

PD3S220LQ-7

Image is for reference,
please contact us to get the real picture

Part No :

PD3S220LQ-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE SCHOTTKY 20V 2A POWERDI323
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
PD3S220LQ-7 PDF
Availability
33412000 pieces
Unit Price
$0.55000

Current price of PD3S220LQ-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PD3S220LQ-7 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):2A
Voltage - Forward (Vf) (Max) @ If:490 mV @ 2 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:160 µA @ 20 V
Capacitance @ Vr, F:46pF @ 10V, 1MHz
Mounting Type:Surface Mount
Package / Case:PowerDI™ 323
Supplier Device Package:PowerDI™ 323
Operating Temperature - Junction:-65°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1N4150

1N4150

DIODE GEN PURP 50V 300MA DO35
HOT JAN1N5420

JAN1N5420

DIODE GEN PURP 600V 3A AXIAL

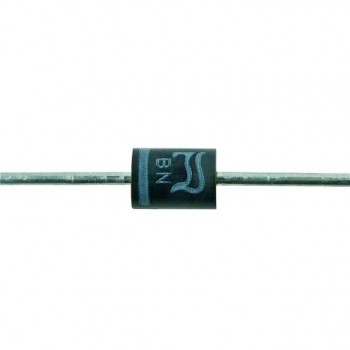

HOT BY880-50-CT
