ACDBN120-HF

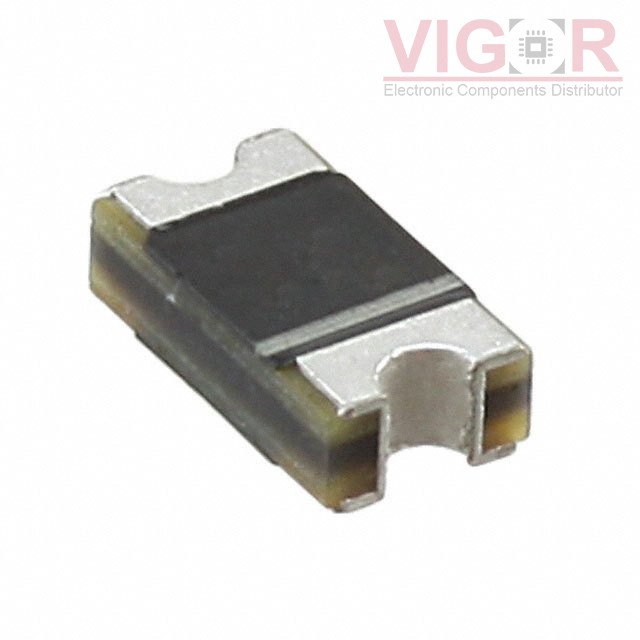

Image is for reference,
please contact us to get the real picture

Part No :: ACDBN120-HF

Manufacturer: Comchip Technology

Description: DIODE SCHOTTKY 20V 1A 1206

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: ACDBN120-HF PDF

Availability: 21 pieces

Unit Price: ~~$0.50000~~

Current price of ACDBN120-HF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACDBN120-HF Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	320 mV @ 100 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	200 µA @ 20 V
Capacitance @ Vr, F:	110pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	2-SMD
Supplier Device Package:	1206
Operating Temperature - Junction:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
