SDM20U30LP-7

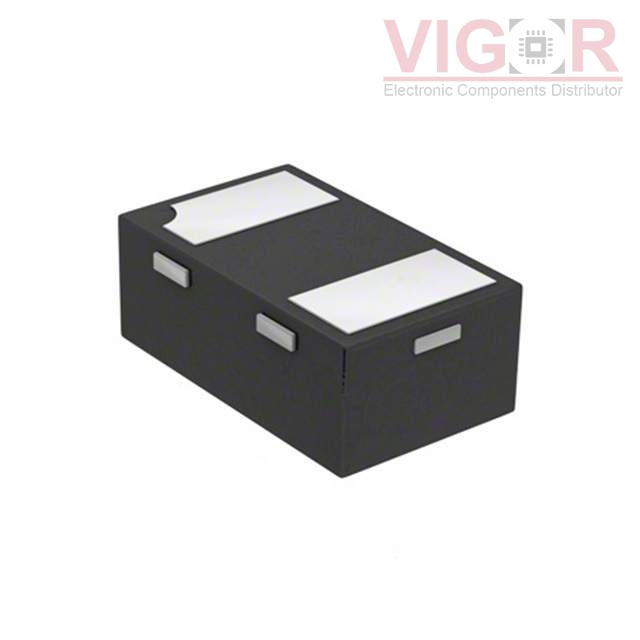

Image is for reference,
please contact us to get the real picture

Part No :: SDM20U30LP-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: DIODE SCHOTTKY 30V 200MA 2DFN

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: SDM20U30LP-7 PDF

Availability: 192933 pieces

Unit Price: ~~$0.43000~~

Current price of SDM20U30LP-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDM20U30LP-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	575 mV @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	150 µA @ 30 V
Capacitance @ Vr, F:	20pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	0402 (1006 Metric)
Supplier Device Package:	X1-DFN1006-2
Operating Temperature - Junction:	-65°C ~ 125°C

Please confirm the specifications of the products when ordering.
