1SS424(TPL3,F)

1SS424(TPL3,F)

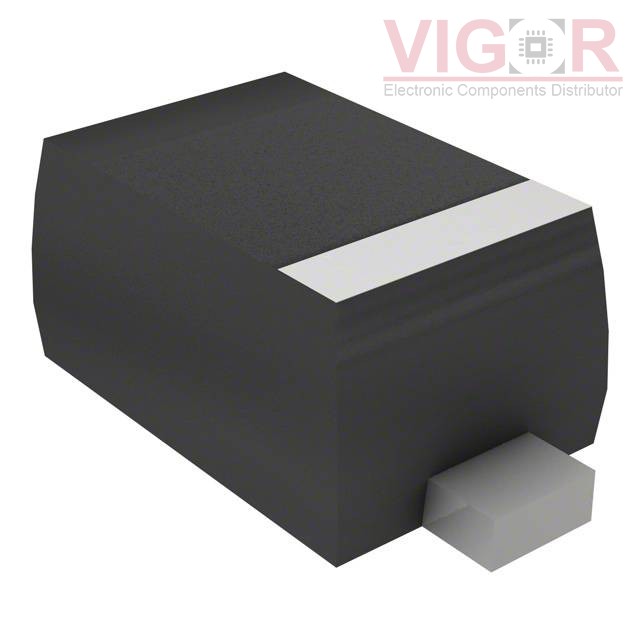

Image is for reference,
please contact us to get the real picture

Part No :

1SS424(TPL3,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
DIODE SCHOTTKY 20V 200MA SSM
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
1SS424(TPL3,F) PDF
Availability
14419 pieces
Unit Price
$0.23000

Current price of 1SS424(TPL3,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1SS424(TPL3,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:500 mV @ 200 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:50 µA @ 20 V
Capacitance @ Vr, F:20pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:ESC
Operating Temperature - Junction:125°C (Max)
