MBR760

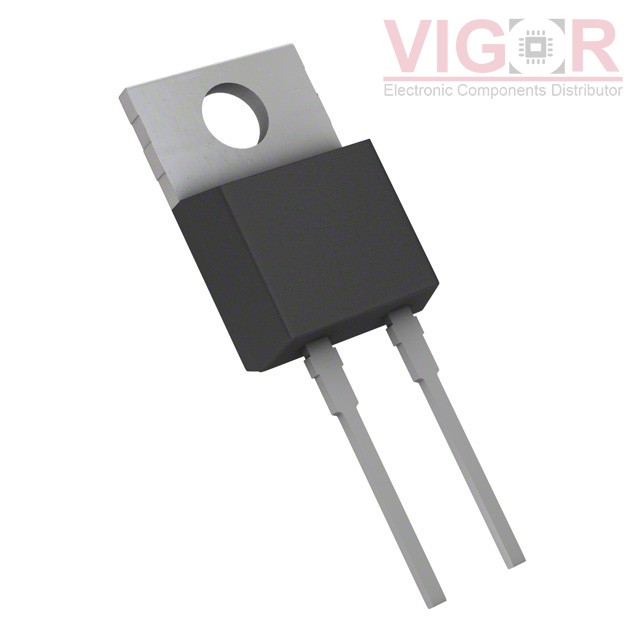

Image is for reference,
please contact us to get the real picture

Part No :: MBR760

Manufacturer: SMC Diode Solutions

Description: DIODE SCHOTTKY 60V TO220AC

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: MBR760 PDF

Availability: 11242 pieces

Unit Price: ~~$0.57000~~

Current price of MBR760 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MBR760 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io):	-
Voltage - Forward (Vf) (Max) @ If:	750 mV @ 7.5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	500 µA @ 60 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220AC
Operating Temperature - Junction:	-55°C ~ 150°C

Please confirm the specifications of the products when ordering.
