JANTX1N6843CCU3

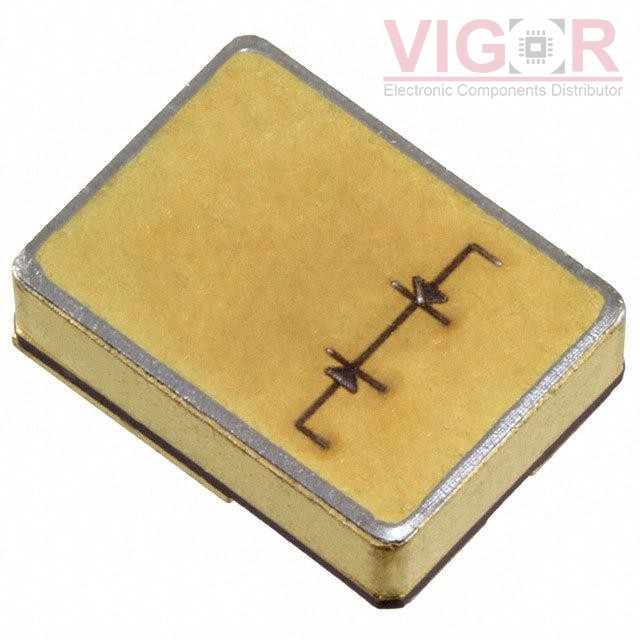

Image is for reference,
please contact us to get the real picture

Part No :: JANTX1N6843CCU3

Manufacturer: Roving Networks / Microchip Technology

Description: DIODE SCHOTTKY 100V 15A SMD

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: JANTX1N6843CCU3 PDF

Availability: 0 pieces

Unit Price: ~~$120.06050~~

Current price of JANTX1N6843CCU3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JANTX1N6843CCU3 Specifications

Type	Description
Series:	Military, MIL-PRF-19500/681
Package:	Bulk
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	15A
Voltage - Forward (Vf) (Max) @ If:	1.27 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	10 µA @ 100 V
Capacitance @ Vr, F:	275pF @ 5V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	3-SMD, Flat Lead
Supplier Device Package:	SMD
Operating Temperature - Junction:	-65°C ~ 150°C

Please confirm the specifications of the products when ordering.
