V30120SG-M3/4W

V30120SG-M3/4W

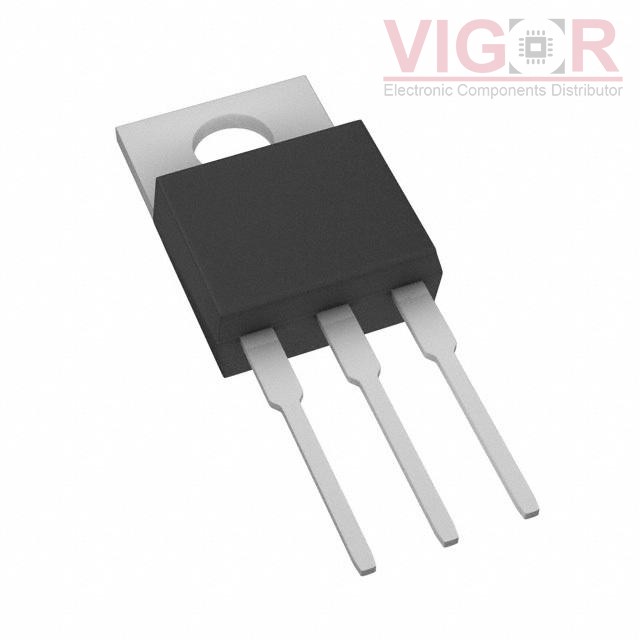

Image is for reference,
please contact us to get the real picture

Part No :

V30120SG-M3/4W

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE SCHOTTKY 30A 120V TO-220AB
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
V30120SG-M3/4W PDF
Availability
0 pieces
Unit Price
$0.75801

Current price of V30120SG-M3/4W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

V30120SG-M3/4W Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tube
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):120 V
Current - Average Rectified (Io):30A
Voltage - Forward (Vf) (Max) @ If:1.28 V @ 30 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 µA @ 120 V
Capacitance @ Vr, F:-
Mounting Type:Through Hole
Package / Case:TO-220-3
Supplier Device Package:TO-220AB
Operating Temperature - Junction:-40°C ~ 150°C
