JANTX1N5806US/TR

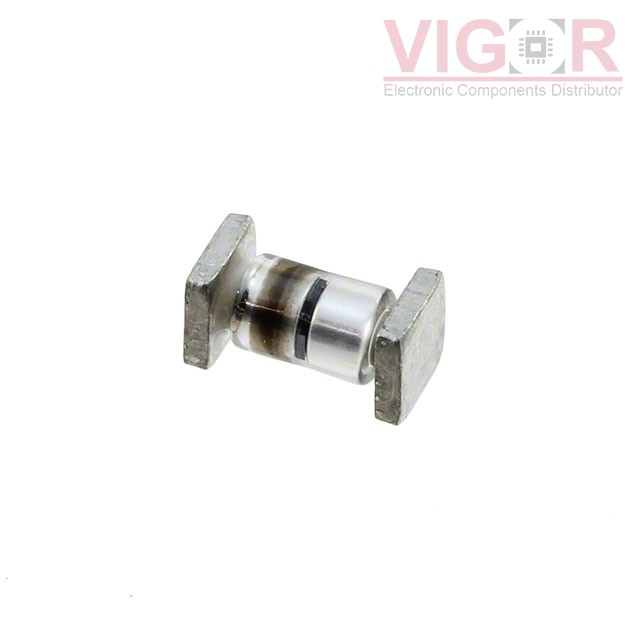

Image is for reference,
please contact us to get the real picture

Part No :: JANTX1N5806US/TR

Manufacturer: Roving Networks / Microchip Technology

Description: UFR,FRR

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: JANTX1N5806US/TR PDF

Availability: 0 pieces

Unit Price: ~~$6.18000~~

Current price of JANTX1N5806US/TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JANTX1N5806US/TR Specifications

Type	Description
Series:	Military, MIL-PRF-19500/477
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	150 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	975 mV @ 2.5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	25 ns
Current - Reverse Leakage @ Vr:	1 µA @ 150 V
Capacitance @ Vr, F:	25pF @ 10V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SQ-MELF, A
Supplier Device Package:	D-5A
Operating Temperature - Junction:	-65°C ~ 175°C

Please confirm the specifications of the products when ordering.
