BAV20W-TP

BAV20W-TP

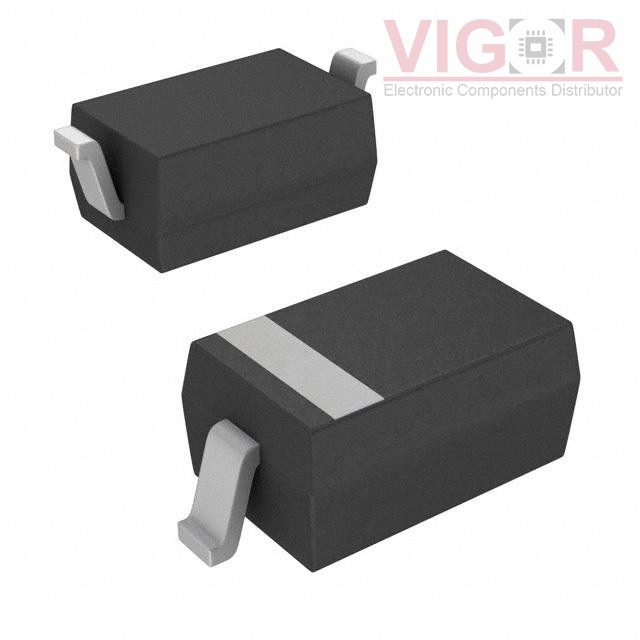

Image is for reference,
please contact us to get the real picture

Part No :

BAV20W-TP

Manufacturer
Micro Commercial Components (MCC)
Description
DIODE GEN PURP 150V 200MA SOD123
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
BAV20W-TP PDF
Availability
16 pieces
Unit Price
$0.22000

Current price of BAV20W-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAV20W-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):150 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 200 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):50 ns
Current - Reverse Leakage @ Vr:100 nA @ 150 V
Capacitance @ Vr, F:1.5pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:SOD-123
Supplier Device Package:SOD-123
Operating Temperature - Junction:-55°C ~ 150°C
