NSR0530P2T5G

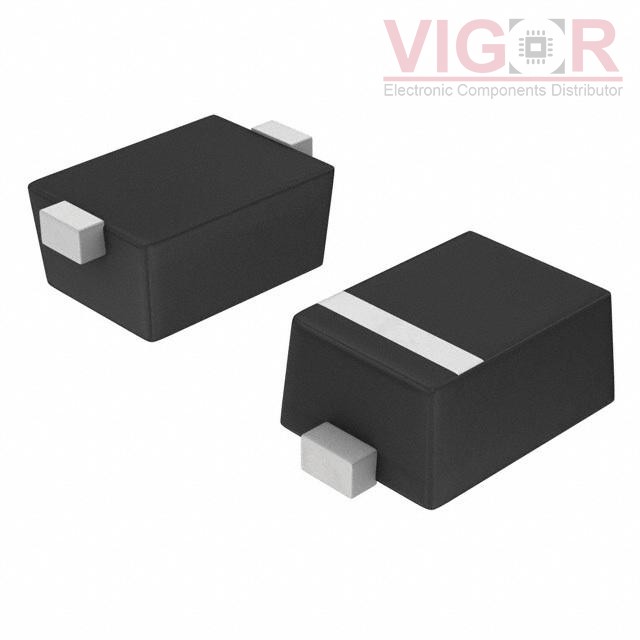

Image is for reference,
please contact us to get the real picture

Part No :: NSR0530P2T5G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: DIODE SCHOTTKY 30V 500MA SOD923

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: NSR0530P2T5G PDF

Availability: 194283 pieces

Unit Price: ~~$0.46000~~

Current price of NSR0530P2T5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSR0530P2T5G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	500mA (DC)
Voltage - Forward (Vf) (Max) @ If:	620 mV @ 500 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	200 µA @ 30 V
Capacitance @ Vr, F:	10pF @ 1V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SOD-923
Supplier Device Package:	SOD-923
Operating Temperature - Junction:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
