SDM2U20CSP-7

SDM2U20CSP-7

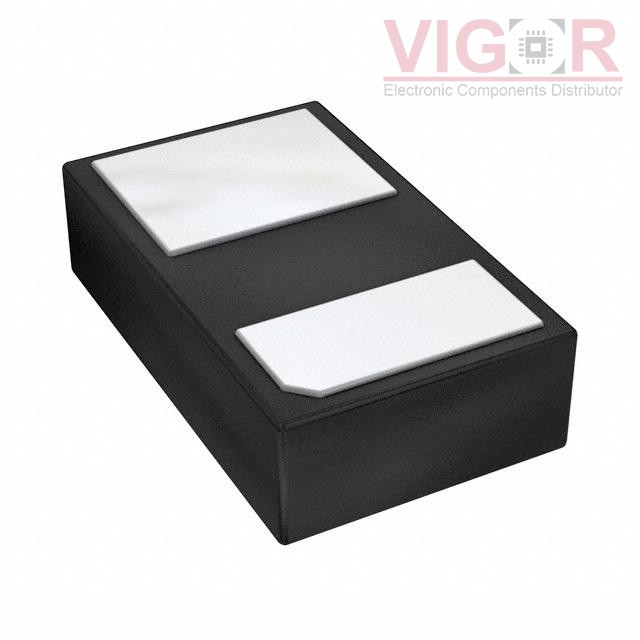

Image is for reference,
please contact us to get the real picture

Part No :

SDM2U20CSP-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE SCHOTTKY 20V 2A WLB1608
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
SDM2U20CSP-7 PDF
Availability
28 pieces
Unit Price
$0.41000

Current price of SDM2U20CSP-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDM2U20CSP-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):2A
Voltage - Forward (Vf) (Max) @ If:470 mV @ 2 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:150 µA @ 20 V
Capacitance @ Vr, F:115pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:X3-WLB1608-2
Operating Temperature - Junction:-55°C ~ 150°C
