SDM05A30CP3-7

SDM05A30CP3-7

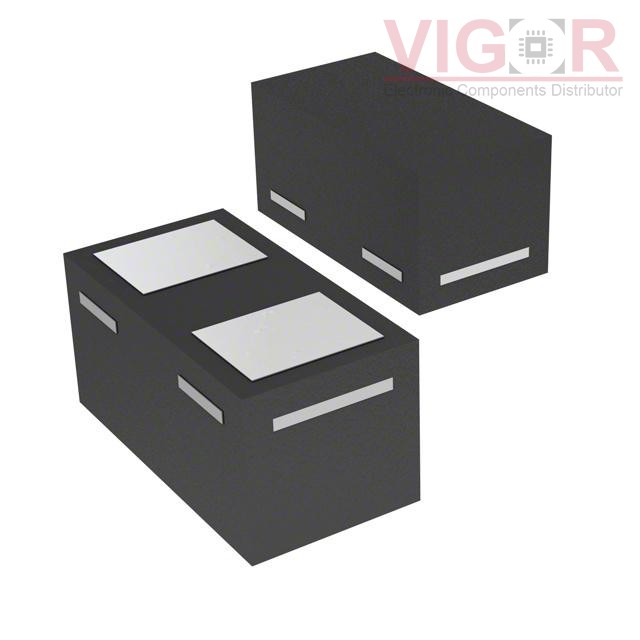

Image is for reference,
please contact us to get the real picture

Part No :

SDM05A30CP3-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
SCHOTTKY RECTIFIER X3-WLB0603-2
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
SDM05A30CP3-7 PDF
Availability
0 pieces
Unit Price
$0.08167

Current price of SDM05A30CP3-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDM05A30CP3-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):500mA
Voltage - Forward (Vf) (Max) @ If:710 mV @ 500 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):4.8 ns
Current - Reverse Leakage @ Vr:9 µA @ 30 V
Capacitance @ Vr, F:7pF @ 10V, 1MHz
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:X3-WLB0603-2
Operating Temperature - Junction:-55°C ~ 150°C
