UH1PD-M3/84A

UH1PD-M3/84A

Image is for reference,
please contact us to get the real picture

Part No :

UH1PD-M3/84A

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE GEN PURP 200V 1A DO220AA
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
UH1PD-M3/84A PDF
Availability
0 pieces
Unit Price
$0.10229

Current price of UH1PD-M3/84A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UH1PD-M3/84A Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):200 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:1.05 V @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):40 ns
Current - Reverse Leakage @ Vr:1 µA @ 200 V
Capacitance @ Vr, F:16pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-220AA
Supplier Device Package:DO-220AA (SMP)
Operating Temperature - Junction:-55°C ~ 175°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SF15G A0G

SF15G A0G

DIODE GEN PURP 300V 1A DO204AL

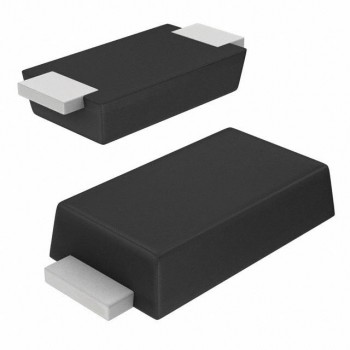

HOT SE20AFJHM3/6B

SE20AFJHM3/6B

DIODE GEN PURP 600V 1.3A DO221AC

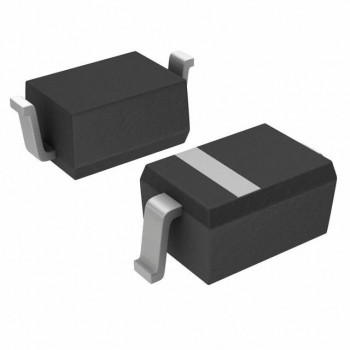

HOT BAT54WS-F2-0000HF
