CDBW120-HF

CDBW120-HF

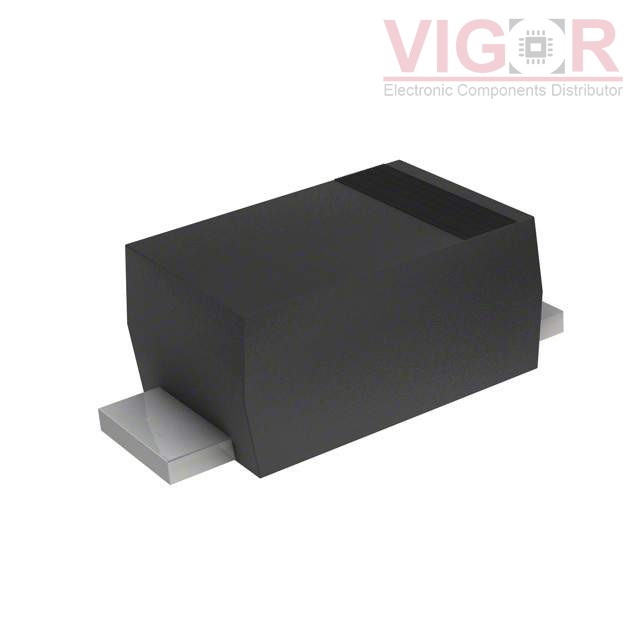

Image is for reference,
please contact us to get the real picture

Part No :

CDBW120-HF

Manufacturer
Comchip Technology
Description
DIODE SCHOTTKY 1A 20V SOD-123
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
CDBW120-HF PDF
Availability
0 pieces
Unit Price
$0.05313

Current price of CDBW120-HF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDBW120-HF Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:450 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:1 µA @ 20 V
Capacitance @ Vr, F:120pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:SOD-123
Supplier Device Package:SOD-123
Operating Temperature - Junction:-
