SDB14HS-AQ

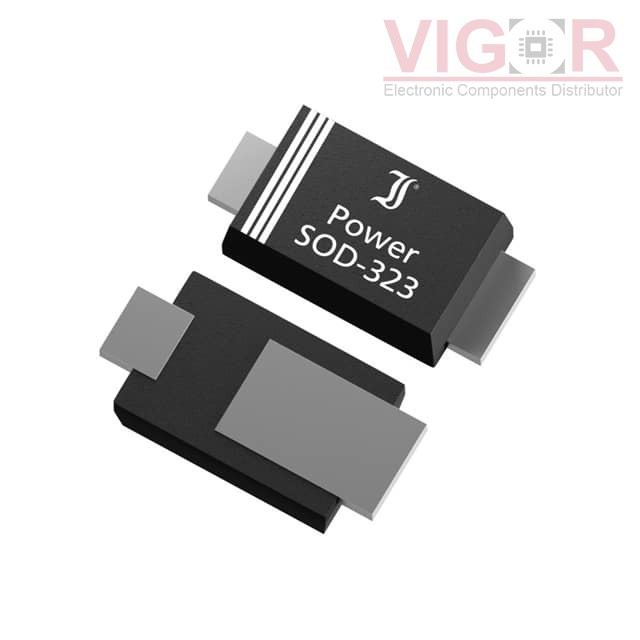

Image is for reference,
please contact us to get the real picture

Part No :: SDB14HS-AQ

Manufacturer: Diotec Semiconductor

Description: SCHOTTKY SOD-323 P 40V 1A

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: SDB14HS-AQ PDF

Availability: 0 pieces

Unit Price: ~~$0.08230~~

Current price of SDB14HS-AQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDB14HS-AQ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	520 mV @ 700 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	40 µA @ 5 V
Capacitance @ Vr, F:	30pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SC-90, SOD-323F
Supplier Device Package:	SOD-323
Operating Temperature - Junction:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
