CD1005-S0180

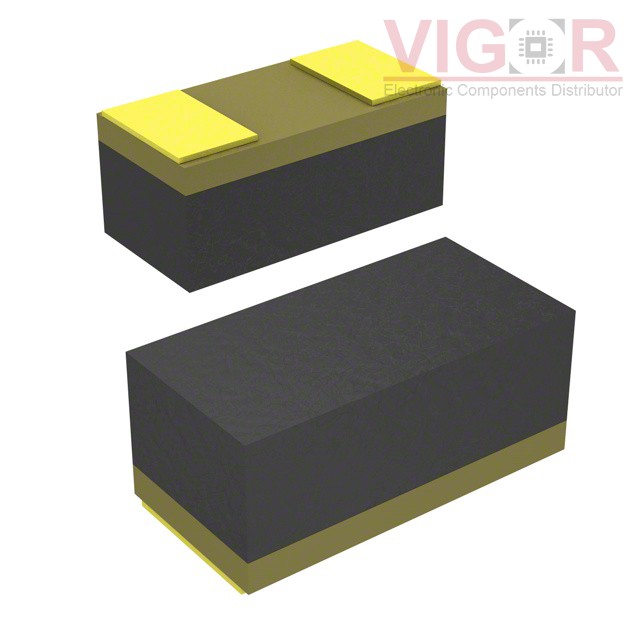

Image is for reference,
please contact us to get the real picture

Part No :: CD1005-S0180

Manufacturer: J.W. Miller / Bourns

Description: DIODE GEN PURP 80V 100MA 1005

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: CD1005-S0180 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CD1005-S0180 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CD1005-S0180 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	80 V
Current - Average Rectified (Io):	100mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	100 nA @ 80 V
Capacitance @ Vr, F:	4pF @ 1V, 100MHz
Mounting Type:	Surface Mount
Package / Case:	1005 (2512 Metric)
Supplier Device Package:	1005
Operating Temperature - Junction:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
