MA2SD2500L

MA2SD2500L

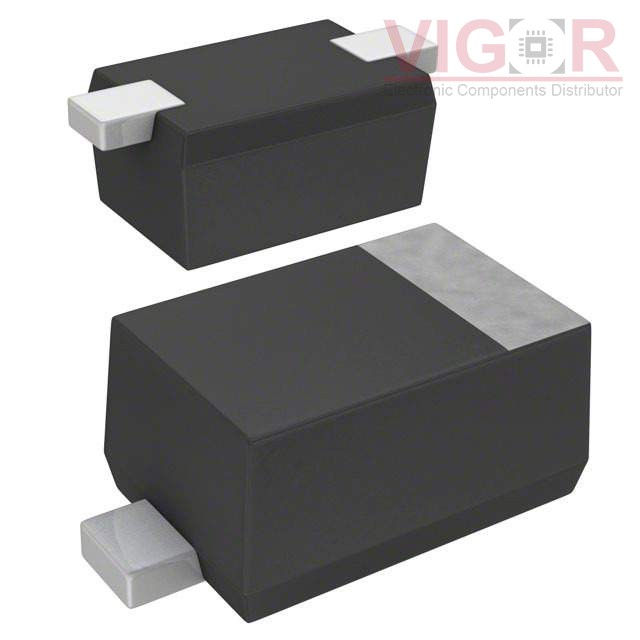

Image is for reference,
please contact us to get the real picture

Part No :

MA2SD2500L

Manufacturer
Panasonic
Description
DIODE SCHOTTKY 15V 200MA SSMINI2
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
MA2SD2500L PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MA2SD2500L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA2SD2500L Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):15 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:390 mV @ 200 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):3 ns
Current - Reverse Leakage @ Vr:50 µA @ 6 V
Capacitance @ Vr, F:20pF @ 1V, 1MHz
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SSMini2-F1
Operating Temperature - Junction:125°C (Max)
