LLSD103A-13

LLSD103A-13

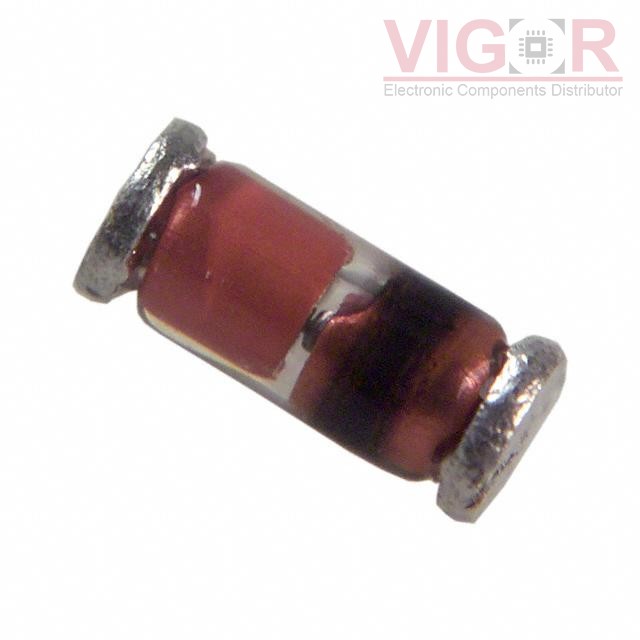

Image is for reference,
please contact us to get the real picture

Part No :

LLSD103A-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE SCHOTTKY 40V 350MA MINMELF
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 23 - Aug 27 2025
DataSheet
LLSD103A-13 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of LLSD103A-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LLSD103A-13 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io):350mA (DC)
Voltage - Forward (Vf) (Max) @ If:600 mV @ 200 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):10 ns
Current - Reverse Leakage @ Vr:5 µA @ 30 V
Capacitance @ Vr, F:50pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-213AA
Supplier Device Package:Mini MELF
Operating Temperature - Junction:-55°C ~ 125°C
