HMPS-2820-TR1

HMPS-2820-TR1

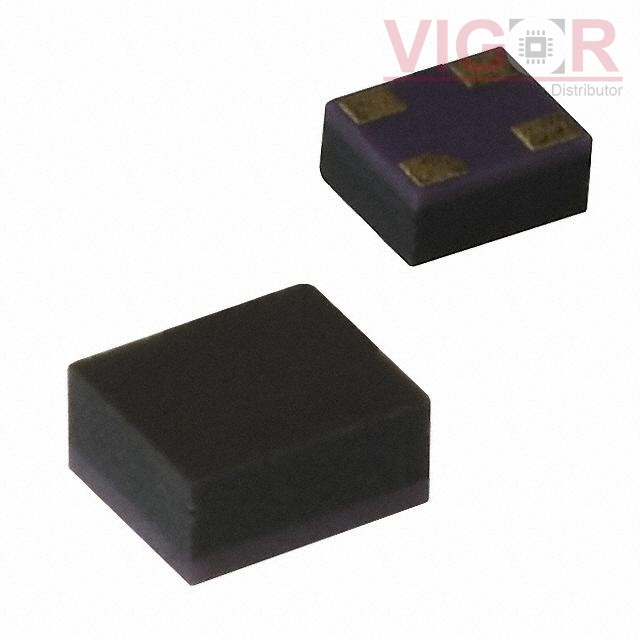

Image is for reference,
please contact us to get the real picture

Part No :

HMPS-2820-TR1

Manufacturer
Broadcom
Description
RF DIODE SCHOTTKY 15V MINIPAK
Catalog
Diodes - RF
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
HMPS-2820-TR1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HMPS-2820-TR1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMPS-2820-TR1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Diode Type:Schottky - Single
Voltage - Peak Reverse (Max):15V
Current - Max:1 A
Capacitance @ Vr, F:1pF @ 0V, 1MHz
Resistance @ If, F:12Ohm @ 5mA, 1MHz
Power Dissipation (Max):-
Operating Temperature:150°C (TJ)
Package / Case:0505 (1412 Metric)
Supplier Device Package:MiniPak 1412
