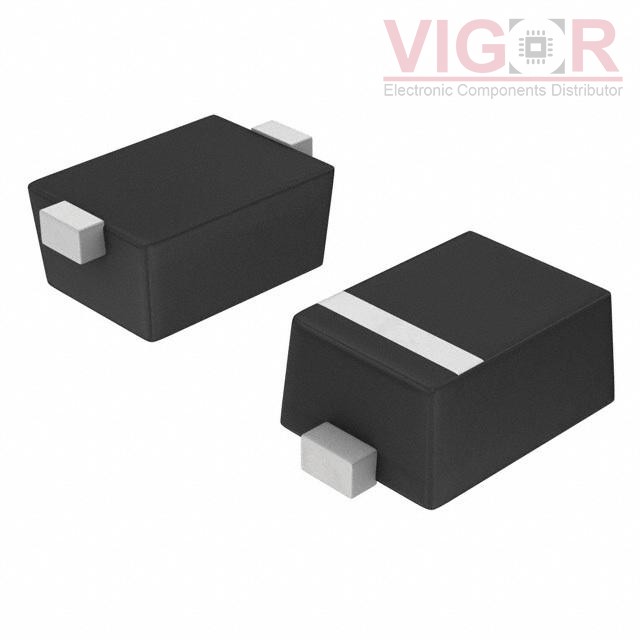

SZNZ9F20VT5G

SZNZ9F20VT5G

Image is for reference,
please contact us to get the real picture

Part No :

SZNZ9F20VT5G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE ZENER 20V 250MW SOD923
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
SZNZ9F20VT5G PDF
Availability
2147483647 pieces
Unit Price
$0.49000

Current price of SZNZ9F20VT5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SZNZ9F20VT5G Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Voltage - Zener (Nom) (Vz):20 V
Tolerance:±5%
Power - Max:250 mW
Impedance (Max) (Zzt):55 Ohms
Current - Reverse Leakage @ Vr:100 nA @ 15.4 V
Voltage - Forward (Vf) (Max) @ If:900 mV @ 10 mA
Operating Temperature:-65°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:SOD-923
Supplier Device Package:SOD-923
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT JAN1N4955

JAN1N4955

DIODE ZENER 7.5V 5W AXIAL
HOT SZMM5Z3V3T1G

SZMM5Z3V3T1G

DIODE ZENER 3.3V 500MW SOD523

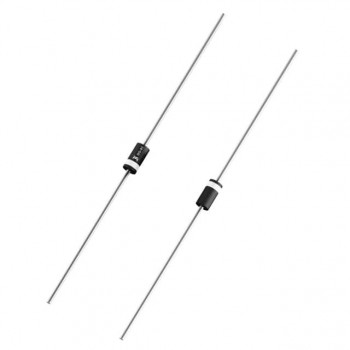

HOT ZY12
