SZ1SMB5949BT3G

SZ1SMB5949BT3G

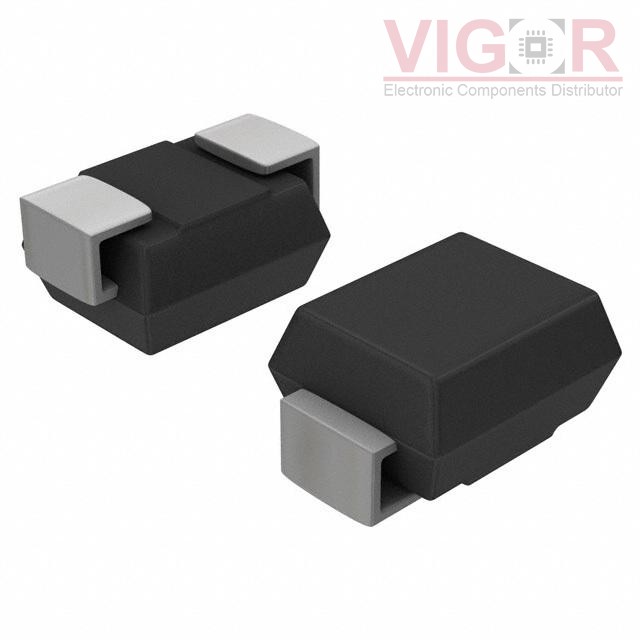

Image is for reference,
please contact us to get the real picture

Part No :

SZ1SMB5949BT3G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE ZENER 100V 550MW SMB
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
SZ1SMB5949BT3G PDF
Availability
0 pieces
Unit Price
$0.25791

Current price of SZ1SMB5949BT3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SZ1SMB5949BT3G Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
Voltage - Zener (Nom) (Vz):100 V
Tolerance:±5%
Power - Max:550 mW
Impedance (Max) (Zzt):250 Ohms
Current - Reverse Leakage @ Vr:1 µA @ 76 V
Voltage - Forward (Vf) (Max) @ If:900 mV @ 10 mA
Operating Temperature:-65°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:SMB
