SMAZ22-13-F

SMAZ22-13-F

Image is for reference,
please contact us to get the real picture

Part No :

SMAZ22-13-F

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE ZENER 22V 1W SMA
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
SMAZ22-13-F PDF
Availability
15844 pieces
Unit Price
$0.49000

Current price of SMAZ22-13-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMAZ22-13-F Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Voltage - Zener (Nom) (Vz):22 V
Tolerance:±5%
Power - Max:1 W
Impedance (Max) (Zzt):15 Ohms
Current - Reverse Leakage @ Vr:500 nA @ 16.7 V
Voltage - Forward (Vf) (Max) @ If:1.2 V @ 200 mA
Operating Temperature:-65°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:DO-214AC, SMA
Supplier Device Package:SMA
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CDLL983

CDLL983

DIODE ZENER 82V 500MW DO213AB

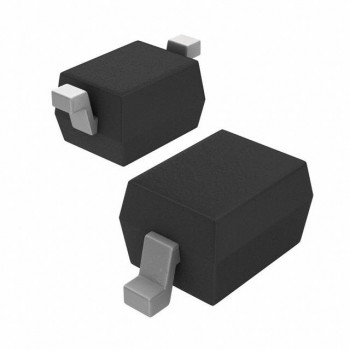

HOT BZX384C5V1-HE3-18

BZX384C5V1-HE3-18

DIODE ZENER 5.1V 200MW SOD323

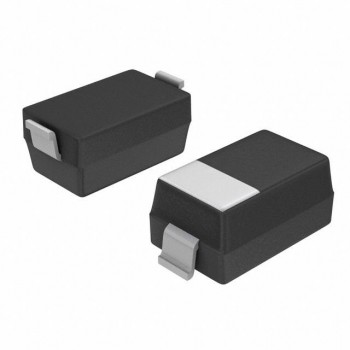

HOT MMSZ5248CT1G
