MAZ23600AG

MAZ23600AG

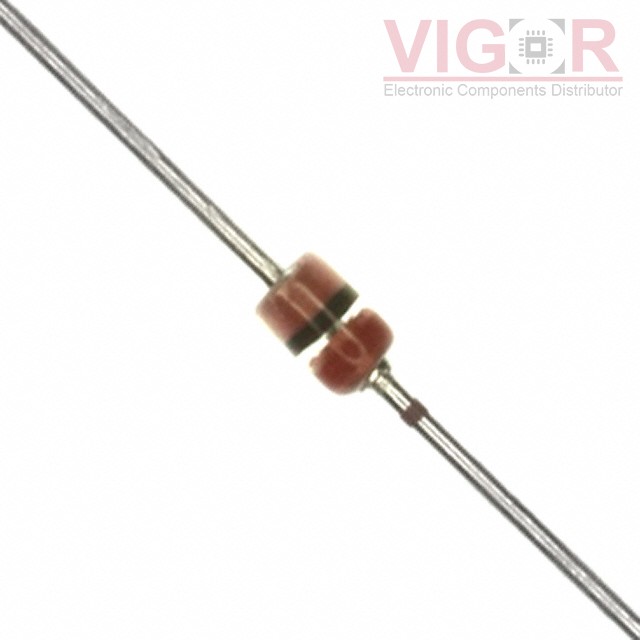

Image is for reference,
please contact us to get the real picture

Part No :

MAZ23600AG

Manufacturer
Panasonic
Description
DIODE ZENER 36V 1W DO41
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
MAZ23600AG PDF
Availability
1490 pieces
Unit Price
$0.36000

Current price of MAZ23600AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAZ23600AG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Voltage - Zener (Nom) (Vz):36 V
Tolerance:±6%
Power - Max:1 W
Impedance (Max) (Zzt):30 Ohms
Current - Reverse Leakage @ Vr:2 µA @ 24 V
Voltage - Forward (Vf) (Max) @ If:1 V @ 200 mA
Operating Temperature:-
Mounting Type:Through Hole
Package / Case:DO-204AL, DO-41, Axial
Supplier Device Package:DO41-A1
