1PMT4120/TR13

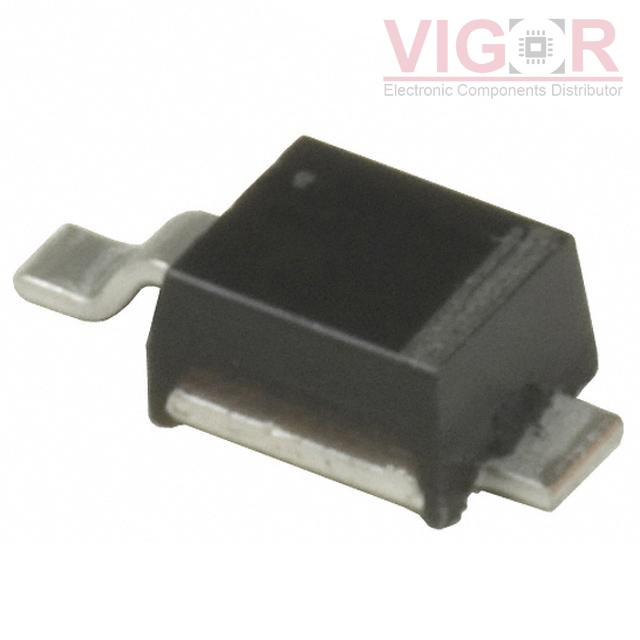

Image is for reference,
please contact us to get the real picture

Part No :: 1PMT4120/TR13

Manufacturer: Roving Networks / Microchip Technology

Description: DIODE ZENER 30V 1W DO216

Catalog: Diodes - Zener - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 25 - Aug 29 2025

DataSheet: 1PMT4120/TR13 PDF

Availability: 0 pieces

Unit Price: ~~$0.66300~~

Current price of 1PMT4120/TR13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1PMT4120/TR13 Specifications

Type	Description
Series:	POWERMITE®
Package:	Tape & Reel (TR)
Part Status:	Active
Voltage - Zener (Nom) (Vz):	30 V
Tolerance:	±5%
Power - Max:	1 W
Impedance (Max) (Zzt):	200 Ohms
Current - Reverse Leakage @ Vr:	10 nA @ 22.8 V
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 200 mA
Operating Temperature:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	DO-216AA
Supplier Device Package:	DO-216

Please confirm the specifications of the products when ordering.
