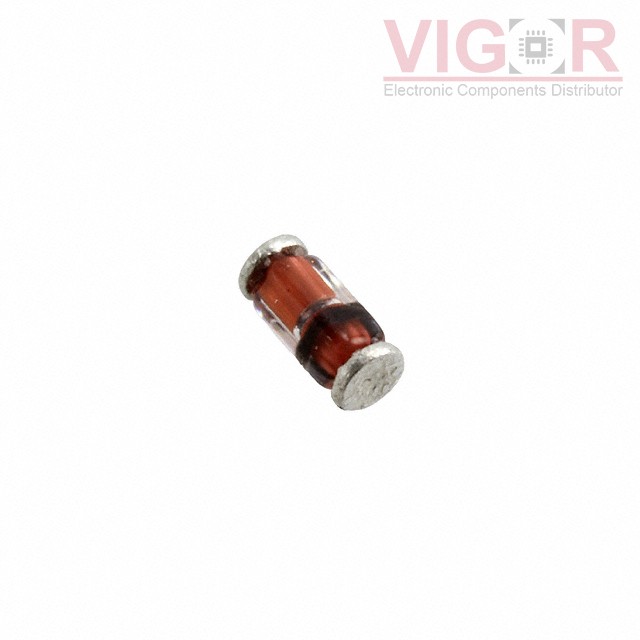

TZQ5232B-GS08

Image is for reference,
please contact us to get the real picture

Part No :: TZQ5232B-GS08

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: DIODE ZENER 5.6V 500MW SOD80

Catalog: Diodes - Zener - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: TZQ5232B-GS08 PDF

Availability: 0 pieces

Unit Price: ~~$0.03080~~

Current price of TZQ5232B-GS08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TZQ5232B-GS08 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Active
Voltage - Zener (Nom) (Vz):	5.6 V
Tolerance:	±5%
Power - Max:	500 mW
Impedance (Max) (Zzt):	11 Ohms
Current - Reverse Leakage @ Vr:	5 µA @ 3 V
Voltage - Forward (Vf) (Max) @ If:	1.5 V @ 200 mA
Operating Temperature:	-65°C ~ 175°C
Mounting Type:	Surface Mount
Package / Case:	SOD-80 Variant
Supplier Device Package:	SOD-80 QuadroMELF
