JANTX1N5543CUR-1

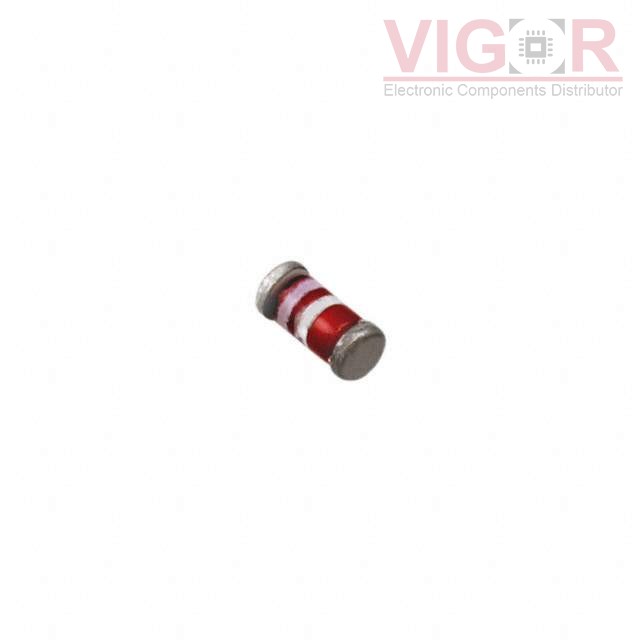

Image is for reference,
please contact us to get the real picture

Part No :: JANTX1N5543CUR-1

Manufacturer: Roving Networks / Microchip Technology

Description: DIODE ZENER 25V 500MW DO213AA

Catalog: Diodes - Zener - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: JANTX1N5543CUR-1 PDF

Availability: 0 pieces

Unit Price: ~~$31.49010~~

Current price of JANTX1N5543CUR-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JANTX1N5543CUR-1 Specifications

Type	Description
Series:	Military, MIL-PRF-19500/437
Package:	Bulk
Part Status:	Active
Voltage - Zener (Nom) (Vz):	25 V
Tolerance:	±2%
Power - Max:	500 mW
Impedance (Max) (Zzt):	100 Ohms
Current - Reverse Leakage @ Vr:	10 nA @ 22.4 V
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 200 mA
Operating Temperature:	-65°C ~ 175°C
Mounting Type:	Surface Mount
Package / Case:	DO-213AA (Glass)
Supplier Device Package:	DO-213AA

Please confirm the specifications of the products when ordering.
