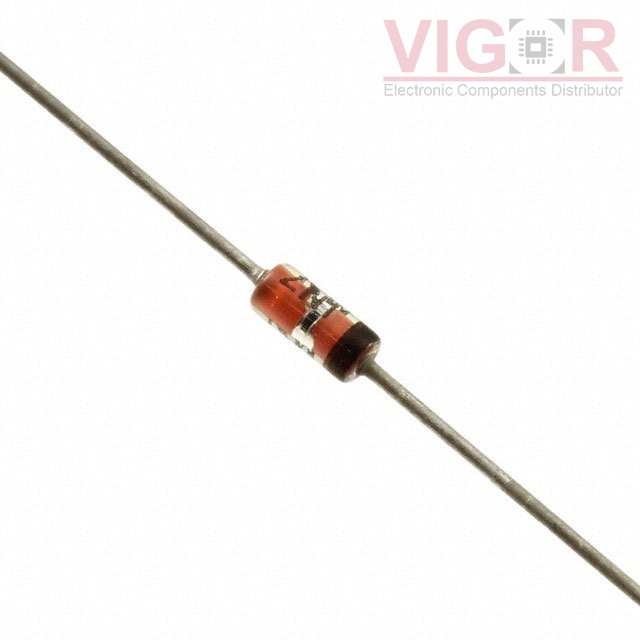

1N4109

1N4109

Image is for reference,
please contact us to get the real picture

Part No :

1N4109

Manufacturer
Roving Networks / Microchip Technology
Description
DIODE ZENER 15V 500MW DO204AH
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
1N4109 PDF
Availability
335 pieces
Unit Price
$1.82000

Current price of 1N4109 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1N4109 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Voltage - Zener (Nom) (Vz):15 V
Tolerance:±5%
Power - Max:500 mW
Impedance (Max) (Zzt):100 Ohms
Current - Reverse Leakage @ Vr:50 nA @ 11.4 V
Voltage - Forward (Vf) (Max) @ If:1.1 V @ 200 mA
Operating Temperature:-65°C ~ 175°C
Mounting Type:Through Hole
Package / Case:DO-204AH, DO-35, Axial
Supplier Device Package:DO-204AH (DO-35 Glass)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SMAJ5937BE3/TR13

SMAJ5937BE3/TR13

DIODE ZENER 33V 3W DO214AC
HOT BZX384C15-E3-18

BZX384C15-E3-18

DIODE ZENER 15V 200MW SOD323

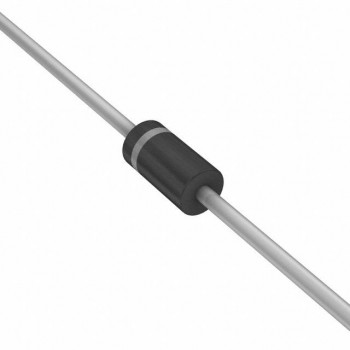

HOT BZX85C3V9TR
