1N5946P/TR8

1N5946P/TR8

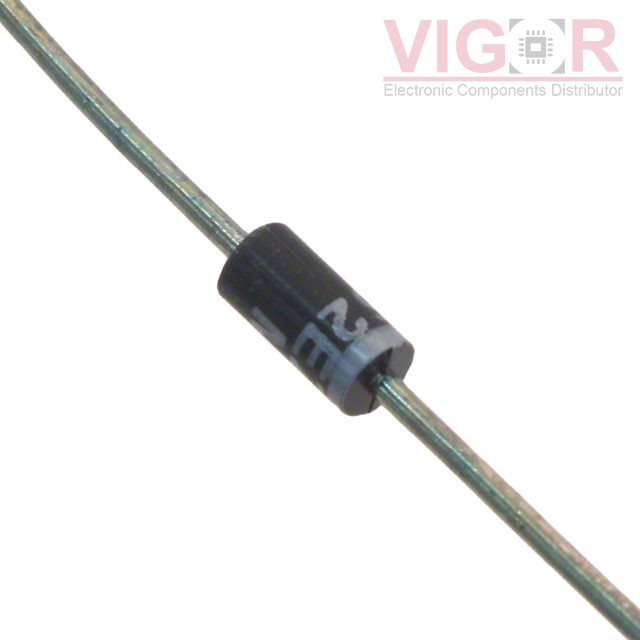

Image is for reference,
please contact us to get the real picture

Part No :

1N5946P/TR8

Manufacturer
Microsemi
Description
DIODE ZENER 75V 1.5W DO204AL
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
1N5946P/TR8 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 1N5946P/TR8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1N5946P/TR8 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Voltage - Zener (Nom) (Vz):75 V
Tolerance:±20%
Power - Max:1.5 W
Impedance (Max) (Zzt):140 Ohms
Current - Reverse Leakage @ Vr:1 µA @ 56 V
Voltage - Forward (Vf) (Max) @ If:1.2 V @ 200 mA
Operating Temperature:-65°C ~ 150°C
Mounting Type:Through Hole
Package / Case:DO-204AL, DO-41, Axial
Supplier Device Package:DO-204AL (DO-41)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT BZD17C200P RFG

BZD17C200P RFG

DIODE ZENER 200V 800MW SUB SMA

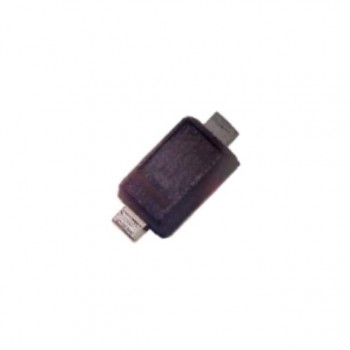

HOT 1SMAF2EZ11
