TD285N16KOFHPSA2

TD285N16KOFHPSA2

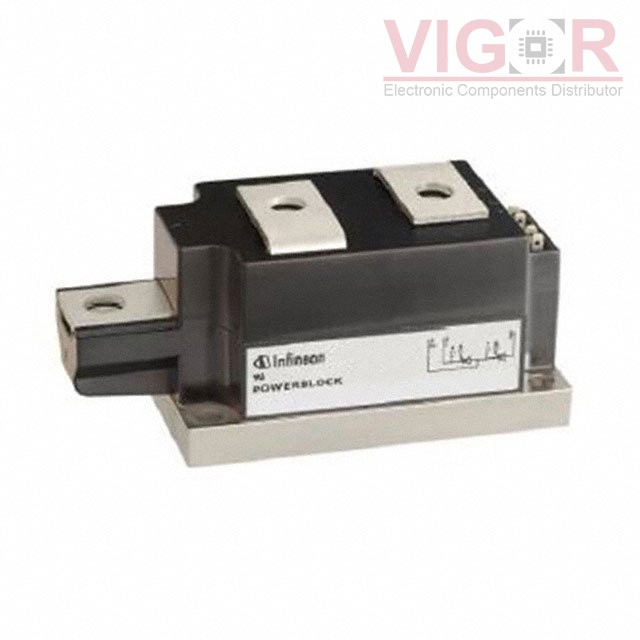

Image is for reference,
please contact us to get the real picture

Part No :

TD285N16KOFHPSA2

Manufacturer
IR (Infineon Technologies)
Description
SCR MODULE 1600V 520A MODULE
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
TD285N16KOFHPSA2 PDF
Availability
0 pieces
Unit Price
$177.52000

Current price of TD285N16KOFHPSA2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TD285N16KOFHPSA2 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Structure:Series Connection - SCR/Diode
Number of SCRs, Diodes:1 SCR, 1 Diode
Voltage - Off State:1.6 kV
Current - On State (It (AV)) (Max):285 A
Current - On State (It (RMS)) (Max):520 A
Voltage - Gate Trigger (Vgt) (Max):2 V
Current - Gate Trigger (Igt) (Max):200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):12500A @ 50Hz
Current - Hold (Ih) (Max):300 mA
Operating Temperature:-40°C ~ 125°C
Mounting Type:Chassis Mount
Package / Case:Module
