TD500N16KOFTIMHPSA1

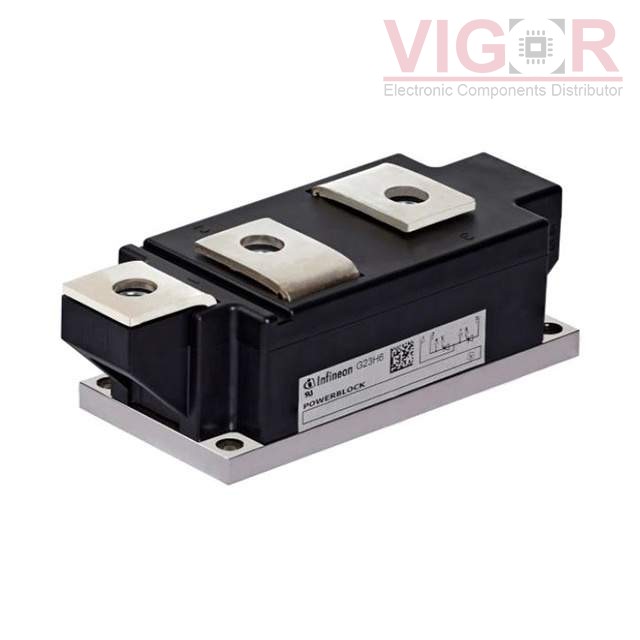

Image is for reference,
please contact us to get the real picture

Part No :: TD500N16KOFTIMHPSA1

Manufacturer: IR (Infineon Technologies)

Description: SCR MODULE 1800V 900A MODULE

Catalog: Thyristors - SCRs - Modules

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: TD500N16KOFTIMHPSA1 PDF

Availability: 0 pieces

Unit Price: ~~$285.72500~~

Current price of TD500N16KOFTIMHPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TD500N16KOFTIMHPSA1 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Structure:	Series Connection - SCR/Diode
Number of SCRs, Diodes:	1 SCR, 1 Diode
Voltage - Off State:	1.8 kV
Current - On State (It (AV)) (Max):	500 A
Current - On State (It (RMS)) (Max):	900 A
Voltage - Gate Trigger (Vgt) (Max):	2.2 V
Current - Gate Trigger (Igt) (Max):	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	17000A @ 50Hz
Current - Hold (Ih) (Max):	300 mA
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	Module

Please confirm the specifications of the products when ordering.
