VS-VSKT320-08PBF

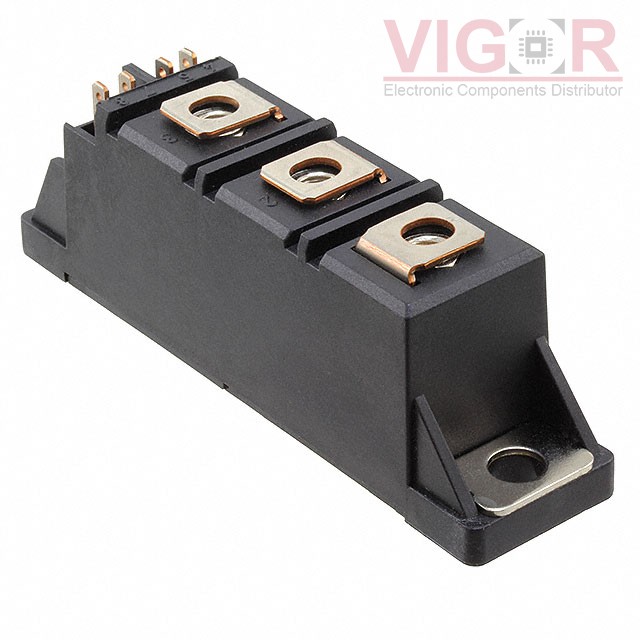

Image is for reference,
please contact us to get the real picture

Part No :: VS-VSKT320-08PBF

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: THYRISTOR MAGN-A-PAK POWER MODUL

Catalog: Thyristors - SCRs - Modules

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: VS-VSKT320-08PBF PDF

Availability: 0 pieces

Unit Price: ~~$209.82500~~

Current price of VS-VSKT320-08PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-VSKT320-08PBF Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Structure:	Series Connection - All SCRs
Number of SCRs, Diodes:	2 SCRs
Voltage - Off State:	800 V
Current - On State (It (AV)) (Max):	320 A
Current - On State (It (RMS)) (Max):	710 A
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	9000A, 9420A
Current - Hold (Ih) (Max):	500 mA
Operating Temperature:	-40°C ~ 130°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	MAGN-A-PAK

Please confirm the specifications of the products when ordering.
