VHF15-14IO5

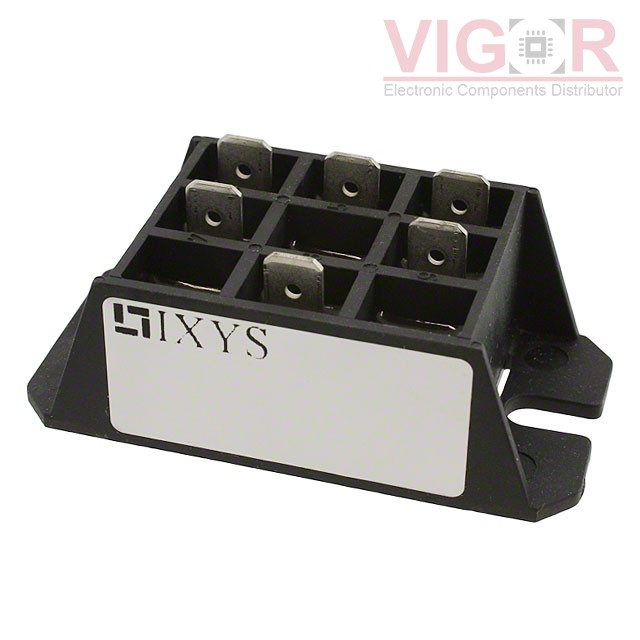

Image is for reference,
please contact us to get the real picture

Part No :: VHF15-14IO5

Manufacturer: Wickmann / Littelfuse

Description: BRIDGE RECTIF SGLE PHASE W/DIODE

Catalog: Thyristors - SCRs - Modules

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: VHF15-14IO5 PDF

Availability: 7 pieces

Unit Price: ~~$23.20000~~

Current price of VHF15-14IO5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VHF15-14IO5 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Structure:	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes:	2 SCRs, 2 Diodes
Voltage - Off State:	1.4 kV
Current - On State (It (AV)) (Max):	-
Current - On State (It (RMS)) (Max):	15 A
Voltage - Gate Trigger (Vgt) (Max):	1 V
Current - Gate Trigger (Igt) (Max):	65 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	190A, 210A
Current - Hold (Ih) (Max):	100 mA
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	PWS-E1

Please confirm the specifications of the products when ordering.
